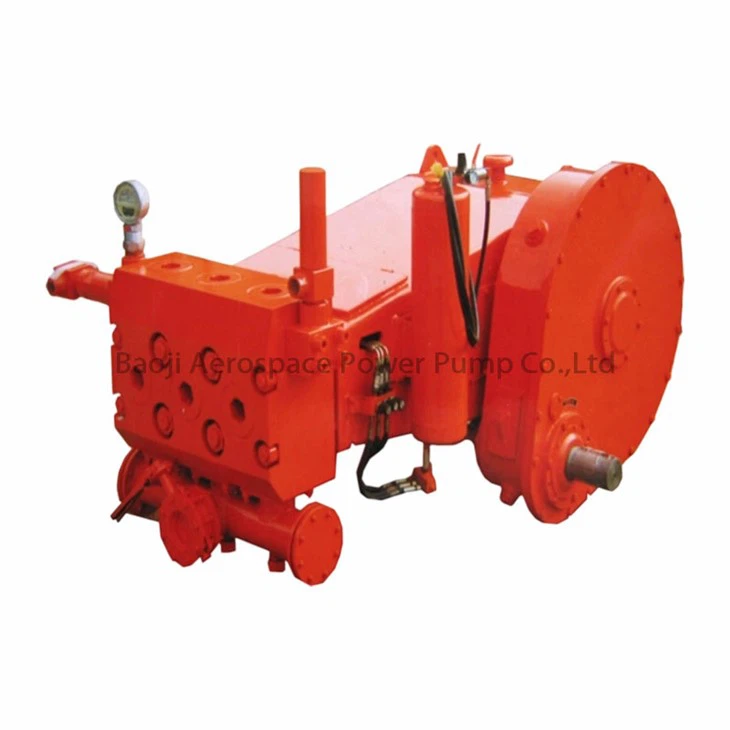

NB600 Drilling Mud Pump adapts three-cylinder single acting plunger style. The pump has complete structure, small volume and light weight and can be loaded on the vehicle. It can be used in fracturing and workover treatment on the oil fields.
Features
1. The Plunger's diameter can be chosen from 2.5", 2.75," 3", 3.5", 4"to 4.5" to meet users' various needs.
2. The power ends of all the plungers are the same.
3. Interruptively work.
Technical parameters
Latest Customized major technical parameters
|
Model |
HTB600S |
|
|
Rated power |
kW(HP) |
447(600) |
|
Maximum connecting rod force |
kg |
43360 |
|
Dimension |
mm |
1356×1366×832 |
|
Weight |
kg |
2086 |
|
Running type |
Interrupting |
|
Performance List (LATEST CUSTERIZED PERFORMANCE PARAMETERS OF HTB600S) (Fluid: produce water with oil)
|
Stoke min-1 |
Speed ratio min-1 |
Plunger DN 3.5″ |
Plunger DN 4″ |
Plunger DN 4.5″ |
||||||
|
Discharge capacity L/min |
Discharge Pressure MPa |
Shaft power kW |
Discharge capacity L/min |
Discharge Pressure MPa |
Shaft power kW |
Discharge capacity L/min |
Discharge Pressure MPa |
Shaft power kW |
||
|
50 |
230 |
142 |
70 |
180.3 |
185 |
50 |
168 |
234 |
40 |
153 |
|
75 |
345 |
213 |
70 |
270.5 |
278 |
50 |
252.5 |
352 |
40 |
230 |
|
100 |
460 |
284 |
70 |
360.6 |
370 |
50 |
336.0 |
469 |
40 |
340.7 |
|
150 |
690 |
425 |
57.9 |
447 |
556 |
44.2 |
447 |
703 |
35.0 |
447 |
|
200 |
920 |
567 |
43.4 |
447 |
741 |
33.2 |
447 |
938 |
26.2 |
447 |
|
250 |
1150 |
709 |
34.7 |
447 |
926 |
26.5 |
447 |
1172 |
20.9 |
447 |
|
300 |
1380 |
851 |
28.9 |
447 |
1111 |
22.1 |
447 |
1407 |
17.4 |
447 |
Note: Basis of the 90% mechanic efficiency and 100% capacity efficiency.
Application Cases
The series has widely used for conveying mud at the wells on the oil fields. They have been used in bulk in Bohai Oil Field, China.
Purchase Conditions
- Customized products based on clients' specific tech request.
- Supply abilities: Pump with electric motor or diesel engine,control system,pump skid
- OEM/ODM manufacturing.
- Manufacturing Capacity: 600 sets per year
- Delivery period: 40 days
- Favored payment terms: EXW/FOB/LC
