3SY7.5 Crude Oil Transfer Pump adopt module design and liquid end with the valve assmebly for the crude oil with sand, wax or water in it. The valve can reduce the danger of sand and prolong the vave's life, and the wax can be removed timely to gaurantee the smooth ruuning and stable discharge. It is mainly used for transporting crude oil or other related liquid between different oil stations.
Features
1. The plungers of the power end and hydraulic end can be interchangeable with the plungers of 3ZB&5ZB water injection pumps.
2. The Power end adapts the 3-turn & 2-support crankshaft and connection rods structure.
Specification
|
Type |
Triplex SingleActing Plunger Pump |
|
Pump power |
5.4-10.1 HP(4-7.5KW) |
|
Flow rate range |
0.9-4.4m3/h |
|
Suction Pressure |
0.02-0.10Mpa(2.9-14.5psi) |
|
Discharge pressure |
5-20Mpa |
|
Size |
810*545*360mm |
|
Weight |
400kg |
Application
Mainly used for conveying crude oil or mediums similar to crude oil at physics
Property bettween the oil well stations.

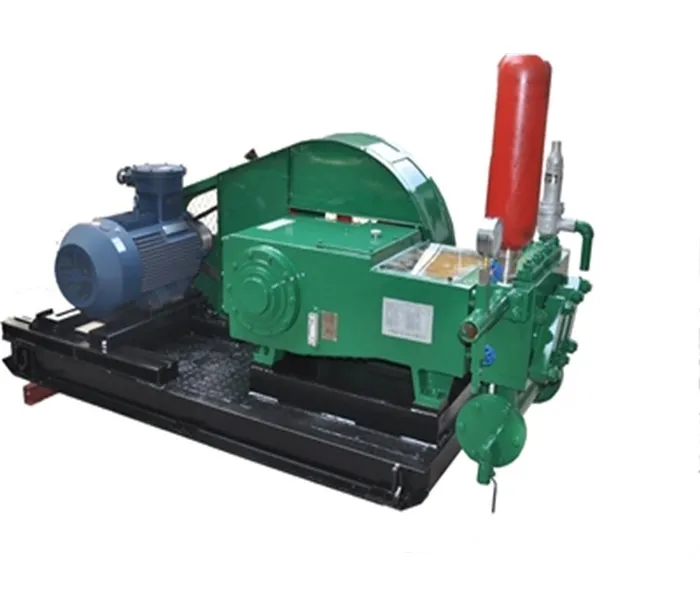

Photos
