The high-pressure pump mainly delivers various high-pressure industrial liquid for hydraulic machine or accumulator, pressure vessel pressure test, sewer de-scaling, dredging, cleaning, etc., and can also transport high-head liquid. They are widely used for transferring clean water and some corrosive liquids.
Technical Features
The liquid end consists of the cylinder, suction and discharge valves, sealed stuffing boxes and the relief valve, which are made of stainless steel or steel. A pressure gage installed at the discharge pipe is used to show the operating condition of the pump.

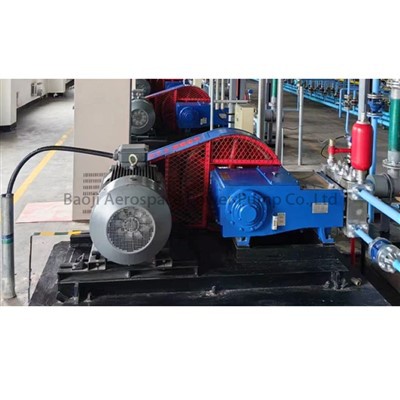

1. The whole unit consists of pump,electric motor and reducer.
2. The pump adopts symmertry structure and easy for installation.
Performances
|
Structural Type |
Triplex horizontal single-action reciprocating plunger pump |
|
Structural Design |
Meet GB/T9234 |
|
Maximum discharge |
12m3/h, Maximum discharge pressure rate (Pmax): 25MPa. |
|
Transmission Medium |
Different indsutrial liquid and high-head water. |
|
Rotation type |
Direct connection or V-belt drive |
Technical Parameters
|
Pump Model |
Discharge flow |
Discharge dispressure |
|
3DT-3.2/20 |
3 m3/h |
20 MPa |
|
3DT-4/22 |
4 m3/h |
22MPa |
|
3DS-6.5/22 |
6.5 m3/h |
22MPa |
|
3DS-8/15 |
8m3/h |
15MPa |
|
3DS-12/10 |
12m3/h |
10MPa |
Application
The series has been used by China domestic and overseas mining industries.
