3ZB55 Water Injection Pump is a horizontal triplex single acting hydraulic pump. It consists of power end, fluid end and lubrication system and is specially for high pressure or booster injection water in a single well.
Features
1. Roated by V-belts.
2. It can be also used for delivering strong corrosive fluids such as acid or alkali.
Specifications
|
Type |
Three-cylinder Single-Acting Plunger Pump |
|
Pump power |
30-55kW |
|
Flow rate range |
2-27m3/h |
|
Discharge pressure range |
6.3-50MPa |
|
Seal type |
Mechanic seal |
|
Size |
1250*995*420 (L*W*H mm) |
|
Weight |
2000kgs |
Application
3ZB55 plunger pump is mainly used for circulating system od Daqing and Changqing Oilfilelds.
Purchase
1)Customized products based on each specific tech request
2)Supply abilities: Pump with electric motor or diesel engine, control system, pump skid
3)OEM/ODM manufacturing
4)Manufacturing Capacity: 300 sets per year
5)Delivery period: 60 days
6)Favored payment terms: EXW/FOB/LC

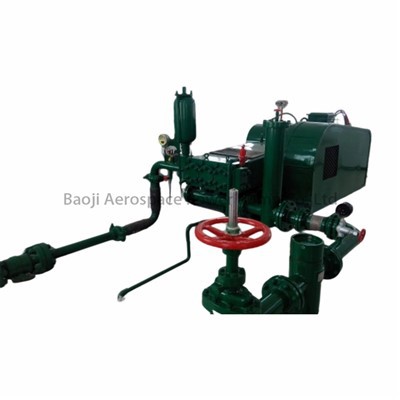

Photos
