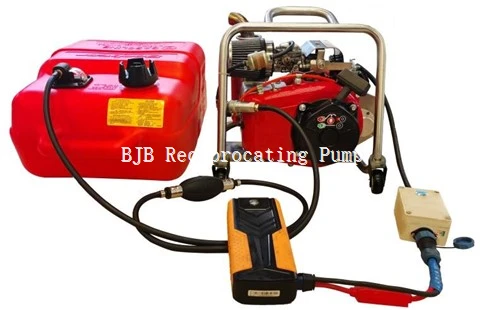

The whole pump unit is light, compact with a small footprint and good stability. Operators can be proficient after simple training.It is suitable for forest firefighting, chemical decontamination, port & waterway services and vehicle-mounted small flow firefighting.
Features and Advantages:
1. Light weight, small size, easy to carry.
2. High discharge pressure and long shot.
3. Ultra-low fuel consumption, excellent hydraulic design makes the product more energy-efficient.
4. Simple operation, pull-cord start, all connections use quick couplings.
5. Perfect safety, equipped with overspeed cut-off function, the pump can keeps working normally when tilted in any direction.
6. Complete supporting equipment with a full set of spare parts,and all interfaces of the pump unit are universal.
Technical Parameters
|
Technical Parameters |
|
|
Rated Flow @ Pressure |
3L/s@0.8MPa |
|
Maximum Fuel Consumption |
3.5L/h |
|
Maximum Shut-off Pressure |
1.5MPa |
|
Maximum Shot |
≮35m |
|
Weight |
14.2Kg |
|
Maximum Power |
8HP |
|
Noise |
≯106dB |
|
Stability |
Pump tilting in any direction does not affect pump running |
|
Overspeed Cut-off Protection Response Time |
3s |
