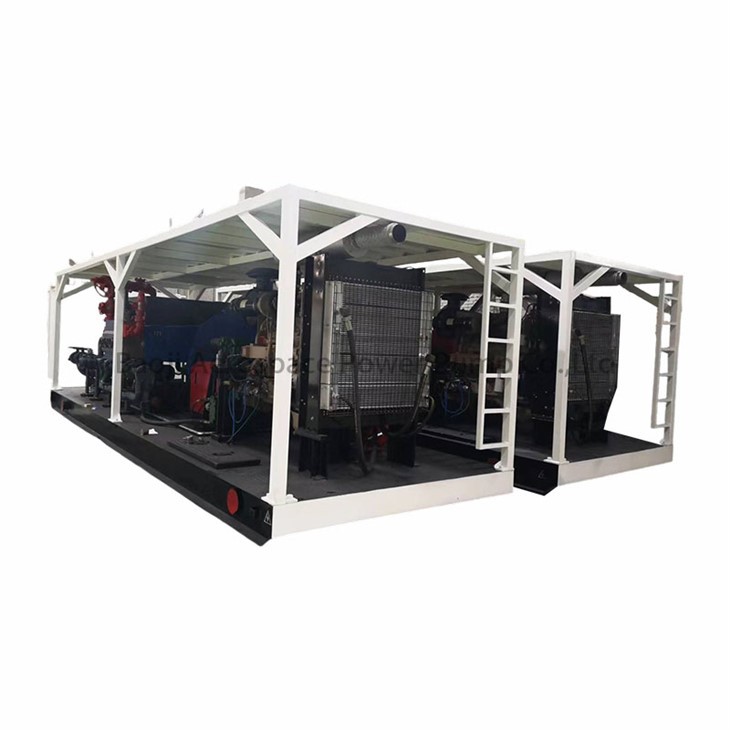

The model HTB250 Horizontal Triplex Single-acting Reciprocating Pump is designed and manufactured with advanced structure based on the aerospace hydraulic power superb technology. It consists of power end, fluid end and lubricant end, mainly used for the circulation system of work over, well washing, cementing, drilling and other operations. Its fluid can be water, slurry, acid liquor and similar materials.
Features
1. Simple structure, high strength and rigidity,
2. Light weight and long service life.
3. API4# valves.
Tech Specification
|
Power end |
|
|
Max. input power rate |
250Hp |
|
Max. Input Toque |
3800 N/M |
|
Max. Input speed |
1297 r/min |
|
Fluid end |
|
|
Max. Pressure |
35 MPa |
|
Max. Pump Speed |
282 min-1 |
|
Max. Discharge Flow |
80 m3/h |
|
Pump Dimension |
1700*1250*1200mm |
Application
The series has widely used for conveying mud at the wells on the oil fields. They have been exported and used in bulk on the oil fields of Nigeria, Venezuela and Columbia.
Purchase Conditions
1. Customized products based on clients' specific tech request.
2. Supply abilities: Pump with electric motor or diesel engine,control system,pump skid
3. OEM/ODM manufacturing.
4. Manufacturing Capacity: 800 sets per year
5. Delivery period: 30 days
6. Favored payment terms: EXW/FOB/LC
