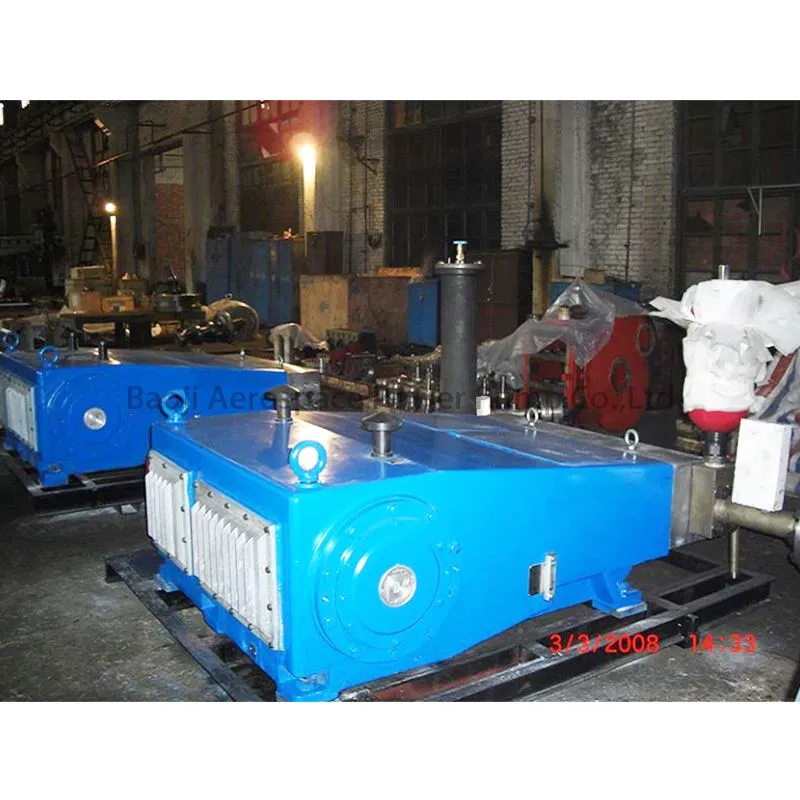

5ZB600 HP Plunger pump is a horizontal quintuple single active recirculation pump. It was developed with 5 patents on pump structure, valve and smart remote control system. It consists of frame, hydraulic end and lubrication end. It can deliver water with up to 200m3/h capacity, which is rather large for plunger or piston pumps. And it can work smoothely at high pressure 50Mpa.
Features
1. Large capacity up to 200m3/h.
2. Spring self-seal structure with reliable seal and less leak.
Specifications
|
Type |
Five-cylinder Single-Acting Plunger Pump |
|
Pump power |
400-630kW |
|
Flow rate range |
15-200m3/h |
|
Discharge pressure range |
6.3-50MPa |
|
Seal type |
Mechanic seal |
|
Size |
2480*1937*1680(L*W*H mm) |
|
Weight |
15000kgs |
Application
Mainly used for injecting water in China mainland Oilfilelds.
