Working Principle

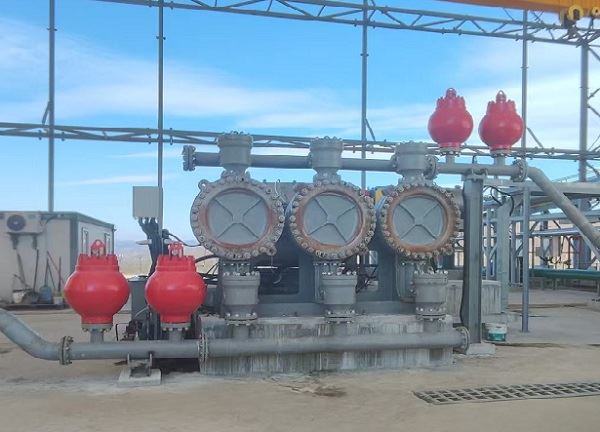

The model 3GMB-V reciprocating diaphragm pumps service various slurry transportation needs with high efficiency, superior wear resistance, stable operation and lower operational cost.The pump takes in the pulp,slurry or tailing in liquid condition via the strong and lasting suction-discharge moving of its inside diaghragms,which keeps the slurry from contacting the moving parts such as the piston, the valves and seals. So the working life of these wearing components are prolonged.
Specifications
|
Capacity |
6,667-11,667 lpm |
|
Maximum working pressure |
100bar |
|
Feed pipe size |
DN400 |
|
Diameter of discharge pipe |
DN300 |
|
Feed pressure |
0.2MPa＜P＜0.4MPa |
|
Overall dimension of pump |
10320x9320x6580 |
|
Total pump weight |
130,000kg |
Installation
Mount the pump on a flat and solid foundation to keep the pump body horizontal,fasten all pipeline connections firmly and reserve sufficient space for overhaul.Check oil levels, diaphragms and pipeline tightness before startup carefully ,then start the pump under no-load condition and gradually increase load afterwards.
Maintenance
Regularly inspect vulnerable parts, replace hydraulic and lubricating oil, monitor pressure and flow rate, and troubleshoot abnormalities in a timely manner.
After Service
All pumps are manufactured in strict compliance with national industrial standards, with lifelong technical support available.
Service Support. We can offer China and international on-site installation and commissioning, 7*24-hour technical consultation, rapid fault repair and spares supply.
Customization Service
This model pump and all reciprocating pumps in our company can be customized according to various actual site working conditions.
