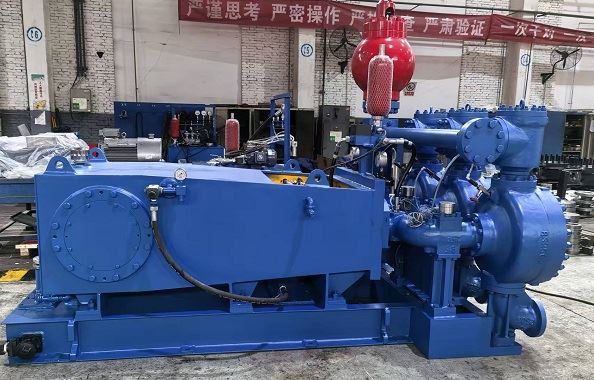

Structure The model 3GMB-IV mainly consists of a diaphragm stroke control system, hydraulic oil tank, lubrication system, flushing system, overpressure protection & exhaust system, valve assemblies,feeding & discharging data reading and acquisition devices,which ensures the pump in a stable operation state.
Control System
It keeps the diaphragm pump running optimally via integrates multiple patented control technologies including the control systems on real-time diaphragm position detection, propulsion oil pressure vector control, precise propulsion gas pressure matching, constant-pressure follow-up lubrication, early diaphragm rupture prediction, interlock control, automatic overpressure early warning protection intelligent drive and full-life-cycle computing control,which fully guarantees the pump to run smoothly and stably.
Specifications
|
Capacity |
2333-4500 lpm |
|
Maximum working pressure |
100bar |
|
Feed pipe size |
DN250 |
|
Diameter of discharge pipe |
DN200 |
|
Feed pressure |
0.2MPa＜P＜0.4MPa |
|
Overall dimension of pump |
9450x8470x4690 |
|
Total pump weight |
93,000kg |
Application
The pump is are applicable to mining, alumina, coal chemical engineering, power, and cement delivery. They are specially developed by our company for conveying high-concentration slurry. They are suitable for media with slurry concentration ≤75%, slurry particle size ≤2mm, slurry temperature ≤120℃.The pump is easy sedimentation,strong abrasiveness & corrosiveness and long working life.
